■ Overview

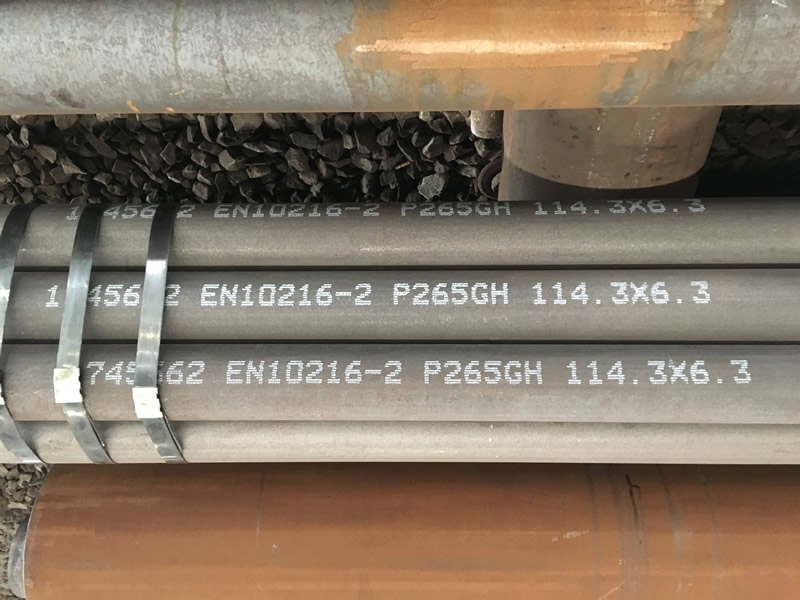

Normalized heat treatment seamless steel pipes P265GH in European specificaitons BS EN10216-2,there are two typies according to different test catagories,P265GHTC1 seamless tubes and P265GHTC2 seamless steel pipes.Xinsteel stockholder EN10216-2 specifications grade P195GH seamless steel pipes,P235GH seamless steel tubes,P265GH boiler steel pipes,P295GH boiler steel tubes with varies wall thickness and nominal diameters.
■ Full Data
Technical Requirements & Additional Services:
♦ Normalized Heat treatment at Temp.880-940 Deg.C
♦ Flattening test according to EN 10233
♦ Ring Tensile test comply to EN 10237
♦ Normalized Heat treatment at Temp.880-940 Deg.C
♦ Flattening test according to EN 10233
♦ Ring Tensile test comply to EN 10237
♦ Drift expanding test comply to EN 10234
♦ Impacting test comply to EN 10045-1
♦ Issued Orginal Mill test certificate under EN10204 3.1/3.2 FORMAT
♦ Surface Protection:Black,Varnish,Hot Dip Galvanized,Coating with shop prime
♦ Impacting test comply to EN 10045-1
♦ Issued Orginal Mill test certificate under EN10204 3.1/3.2 FORMAT
♦ Surface Protection:Black,Varnish,Hot Dip Galvanized,Coating with shop prime
■ Techicals
►Mechnical property for P265GH boiler steel pipes:
|
P265GH |
||||
|
Yield strength (≥Mpa) |
T≤16 |
16<T≤40 |
40<T≤60 |
60<T≤100 |
|
265 |
255 |
245 |
- |
|
|
Tensile strength (≥Mpa) |
410-570 |
|||
►Chemical composition fo P265GH Boiler steel pipes (Heat Analysis Max%)
|
Main chemical elements composition of P265GH |
||||||
|
C |
Si |
Mn |
P |
S |
Cr |
Mo |
|
0.20 |
0.40 |
1.40 |
0.025 |
0.020 |
0.30 |
0.08 |
|
Ni |
Alt |
Cu |
Nb |
Ti |
V |
Cr+Cu+Mo+Ni |
|
0.30 |
0.02 |
0.30 |
0.01 |
0.04 |
0.02 |
0.70 |
